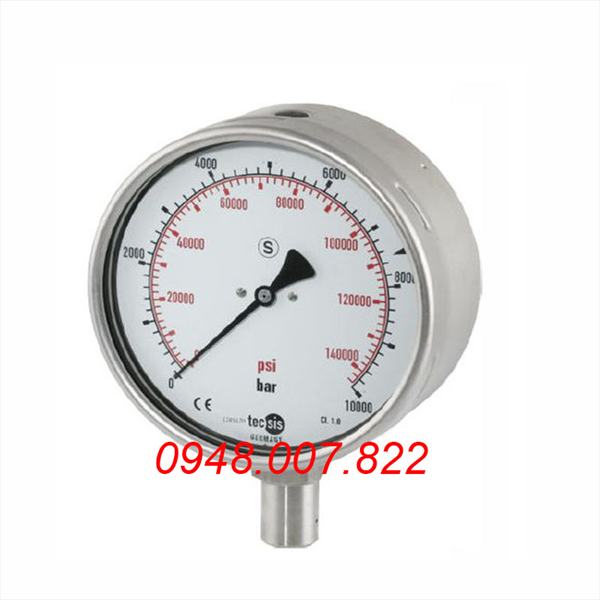

Đồng Hồ Đo Áp Suất P1705, P1706 series (TECSIS)

• Display:

  dial

• Technology:

  Bourdon tube

• Applications:

  process

• Other characteristics:

  stainless steel

• Pressure:

  Min.: 0 bar (0 psi)

  Max.: 10000 bar (145037.74 psi)

All stainless steel safety gauges for ultra high pressures, Nominal sizes ND 160

The ultra high pressure gauge program covers ranges of 0 ... 2500 bar to 0 ... 7000 bar. The instruments are available in accuracy class 1.0, 0.6 resp. 0.25

The use of special materials with highest durability is one of the main requirements for the production of pressurized instrument parts.

The measuring element is a helical Bourdon tube with a concentric shape. The connection is made of Nickel-Chrome-Titanium alloy.

The solid front between measuring system and dial and the blow-out back (acc. to EN837-1/S3) are part of the safety features of the ultra high pressure gauges.
