Mã SP: SFseries - Model: 16 bar

Bộ Lọc Khí SF series (16bar)

Yêu Cầu Giá Tốt

    • SĐT: 0948.007.822
    • Mail: yen@ttech.vn

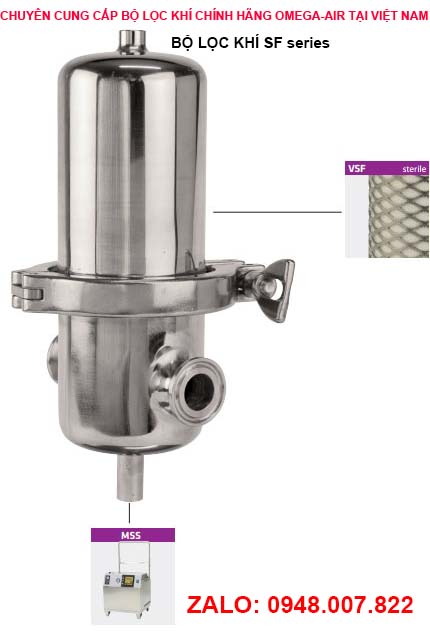

SF series

SF stainless steel sterile filters are designed for high-efficient sterile filtration of compressed air, process air and technical gasses. SF sterile filters provide high-efficient removal of sub-micron particles down to 0,01μm including microorganisms (bacteria). Filter housing surface is polished down to grade Ra0,8. Required compressed air quality according to standard ISO 8571-1 can be achieved with appropriate filter element. All components meet the FDA requirements for contact with food in accordance with the Code of Federal Regulations (CFR), title 21. For any other technical gas please contact producer or your local distributor. Fluid group 1 on request.

Applications

• packing industry
• biotechnology
• breweries
• chemical industry
• dairies
• fermentation processes
• food and beverage industry
• pharmaceutical industry
• hospitals

Characteristics

operating pressure  16 (10) bar
volume flow rate  75 to 21120 Nm3/h
connections  DN10 to DN200
operating temp. range
 -20 °C to 150 °C
material  stainless steel 1.4404

Technical data



SF 03
