Mã SP: WFIT series - Model: 16 bar

Bộ Lọc Khí WFIT series (16bar)


Yêu Cầu Giá Tốt

    • SĐT: 0948.007.823
    • Mail: yen@ttech.vn

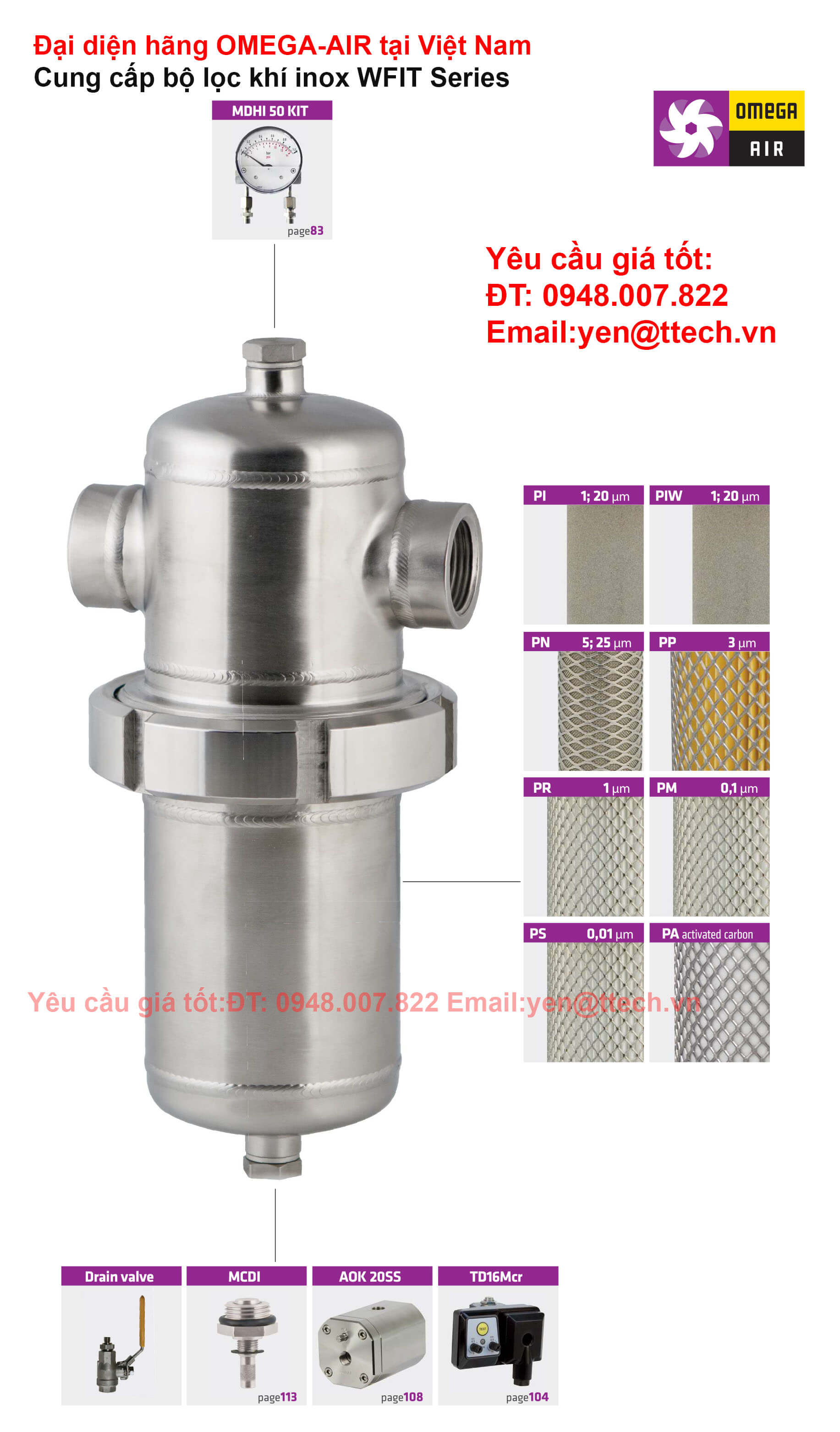

WFIT series

WFIT welded stainless steel filter housings with threaded connections have been developed for filtration of compressed air as well as many other gasses where the risk for corrosion is very high or where stainless steel housing is required.To meet the required gas quality appropriate filter element must be installed into filter housing.

WFIT

Characteristics

 operating pressure 12 (16) bar
 volume flow rate  75 to 3600 Nm3/h
 connections  1/4’’ to 3’’
 operating temp. range
 up to 150 °C
 material  stainless steel 1.4301

Applications

• biotechnology
• breweries
• chemical industry
• petrochemical industry
• dairies
• fermentation processes
• pharmaceutical industry
• hospitals

Technical data

WFIT 03
