HTX75C] Temp & Humidity Transmitter for Air Conditioning (Communication)
- Humidity, Temperature, Dew point Temperature, Enthalpy
- Waterproof Split System
- Strong Metal Mesh Filter
- Low Voltage and Long-Distance Transmission
- Cost Saving and Compact Size
- Mounting Options
- RS485 Communication
Waterproof Split System
The waterproof split system separating the element from circuit ensures no magnetothermal error in high temperature and humidity. It enables to measure precisely.
Strong Metal Mesh Filter
The strong metal mesh filter protects sensors and is removable for convenient maintenance. It endures long under severe conditions of dust and continuous air flow.
Low Voltage and Long-Distance Transmission
It can operate at low voltage(6V) and transmit in the long distance.
Cost Saving and Compact Size
Various combinations of temperature and humidity sensors give users benefit of cost saving and compact size as well as flexibility.

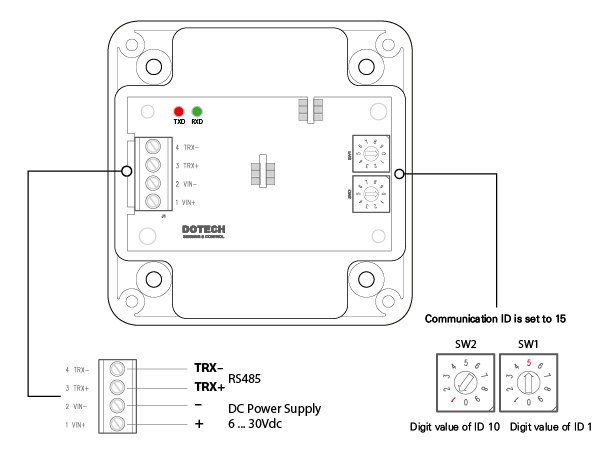

RS485 Communication
HTX75C is easily connected to upper systems via RS485

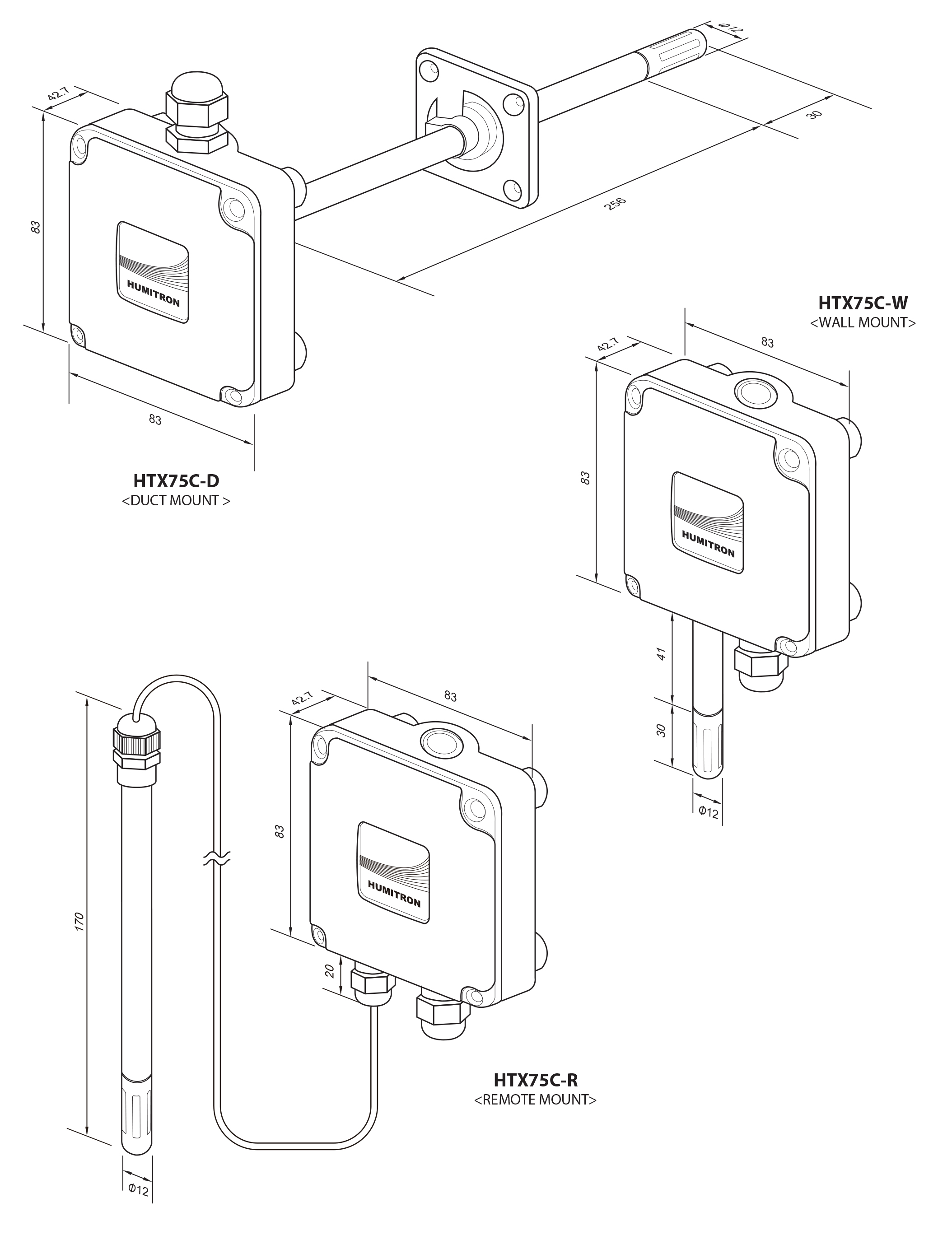

Mounting Options
There are three options for mounting(wall, duct, and remote probe).
■ Technical Specifications
